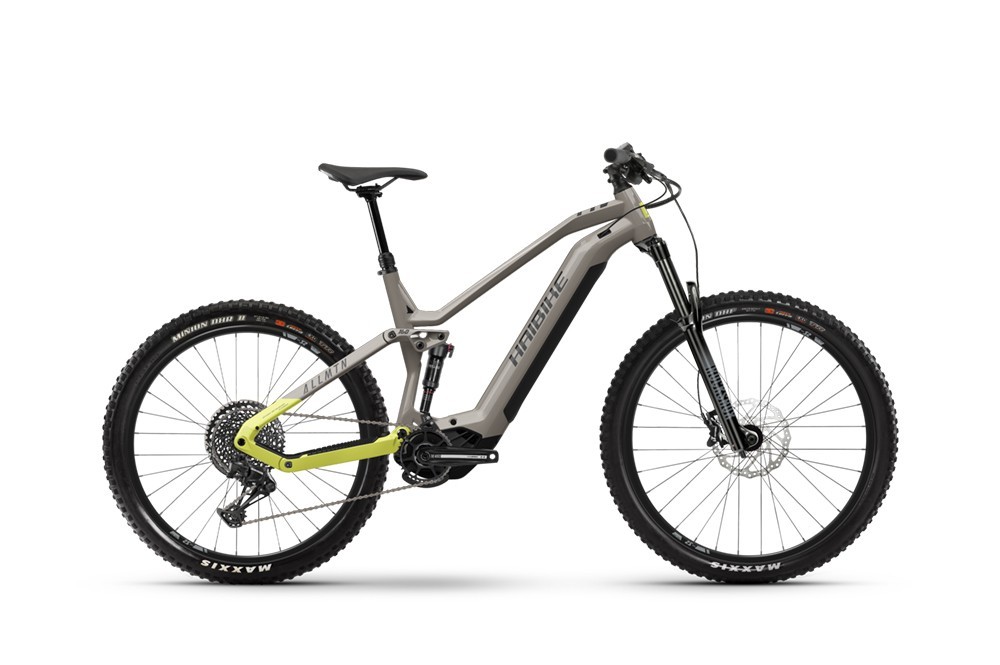

.99With the new AllMtn 2, all paths are open to you: Whether tricky root passages, flow trails or tough climbs. With 160 mm suspension travel and a wheel mix of 29" at the front and 27.5" at the rear, you can roll over any obstacle with ease and benefit from perfect traction on steep uphills. With the support of the new, more compact and more powerful Yamaha PW-X3 motor with 720 Wh battery, you'll get up the mountain quickly and have guaranteed fun on any terrain.
Very friendly and helpful staff excellent service great communication
Specification| Availability | Out of stock, please call for availability |
|---|---|
| BIKE year | 2022 |
| Category | Mountain Bike |
| Colour | Grey and lemon |
| Condition | Brand new |
| battery | InTube, 720 Wh |
| bottom bracket | integrated in the motor |
| brake rotor | Tektro, TR203, 203 mm Tektro, TR203, 203 mm |
| chain | Sram, SX Eagle |
| display | Yamaha, Side Switch, 1.7 LCD, 7 functions |
| frame | Haibike, AllMtn PW-X3, Aluminium |
| front brake | TRP, Slate T4, Hydraulic disc brakes |
| grips | Haibike, MTB grips |
| h stem | Haibike Components, TheStem +++, 31.8 mm |
| handlebar | Haibike Components, TheBar +++, 780 mm |
| headset | Acros, BlockLock, Aluminium |
| hub front | Haibike Components, The Hub ++, 6-bolt standard |
| hub rear | Haibike Components, TheHub ++ Thru axle 12x148, 6-bolt standard |
| motor | Yamaha, PW-X3, 250 Wh, 85 Nm |
| pedal | Freeridepedal, Aluminium, with Reflector |
| rear brake | TRP, Slate T4, Hydraulic disc brakes |
| rear derailleur | Sram, SX Eagle |
| rear shock | RockShox, Deluxe Select Plus, Air, Trunnion Mount |
| rims | WTB, ST i30 TCS, Double Wall WTB, ST i35 TCS, Double Wall |
| seat | Selle Royal, Vivo |
| seat clamp | Internal hexagon, 38.1 mm |
| shifters | Sram, SX Eagle, Trigger switch |
| stem | Haibike Components, TheStem +++, 31.8 mm |
| tyres | Maxxis, Minion DHF II, 63-622, 29 x 2.5 inch Maxxis, Minion DHR II, 66-584, 27.5 x 2.6 inch |
| MPN | 45149241 |
| PNUM | 18173 |
| PRICE | £3799.99 |
Reviews| Feel | Quality | Ride | Value | ||
|---|---|---|---|---|---|
| Mr Andrew Gills |  | | | |
10 |
| Feel | 10 |
| Quality | 10 |
| Ride | 10 |
| Value | 10 |
| Overall rating | 10 |
Size guide| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (in) |
| 4' 10" - 5' 2" | 148 - 158 | XS | 13 - 14 |
| 5' 2" - 5' 6" | 158 - 168 | S | 15 - 16 |
| 5' 6" - 5' 10" | 168 - 178 | M | 17 - 18 |
| 5' 10" - 6' 1" | 178 - 185 | L | 19 - 20 |
| 6' 1" - 6' 4" | 185 - 193 | XL | 21 - 22 |
| 6' 4" - 6' 6" | 193 - 198 | XXL | 23 - 24 |
| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (in) |
| 4' 10" - 5' 2" | 148 - 158 | XS | 13 - 14 |
| 5' 2" - 5' 6" | 158 - 168 | S | 15 - 16 |
| 5' 6" - 5' 10" | 168 - 178 | M | 17 - 18 |
| 5' 10" - 6' 1" | 178 - 185 | L | 19+ |
