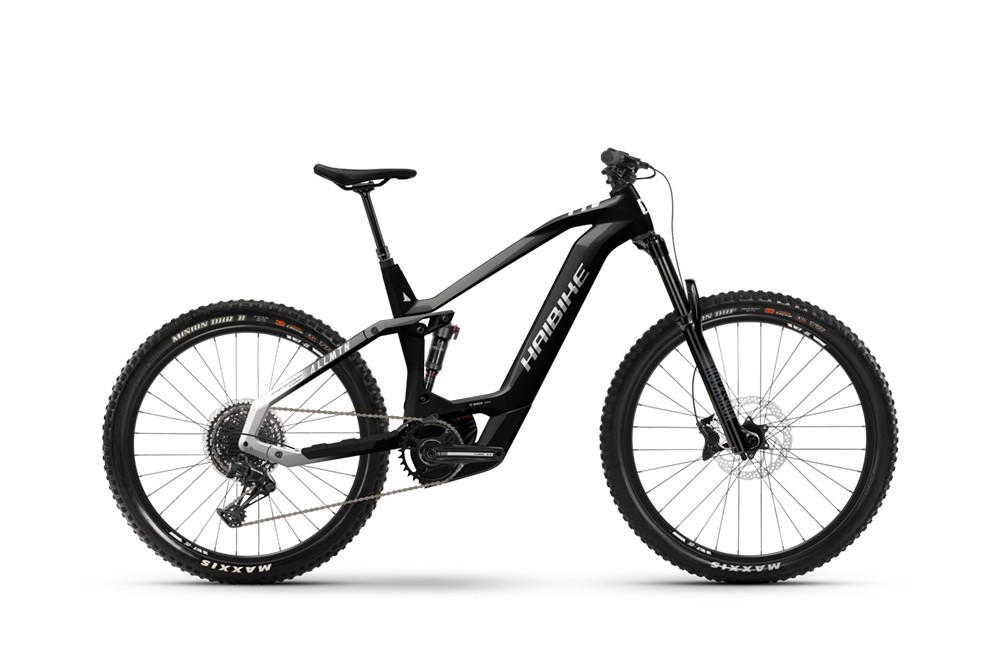

.00An eMTB for every rider – that's our 2022 Haibike AllMtn CF 8. With this e-Fully, you can master sweaty climbs just as confidently as demanding downhills: Thanks to the new Bosch Performance CX Smart System motor with 85 Nm of torque, you will accelerate powerfully uphill, while the 750 Wh Powertube guarantees you maximum range. The lightweight carbon frame with aluminium rear triangle saves weight and the new subframe construction provides more torsional stiffness. With 160 mm RockShox suspension elements at the front and rear, rough terrain is no problem for you. High-quality brake and gear components from SRAM and Shimano round off this versatile e-mountain bike and make it the perfect companion for anyone who wants to experience perfect ePerformance both uphill and downhill.
Very friendly and helpful service. Daughter absolutely loves her new Frog bike.
Specification| Availability | Out of stock, please call for availability |
|---|---|
| BIKE year | 2022 |
| Category | Mountain Bike |
| Colour | Black White Gloss |
| Condition | Brand new |
| battery | Bosch, PowerTube, 750 Wh |
| bottom bracket | integrated in the motor |
| brake rotor | Shimano, RT EM300L, 203 mm Shimano, RT30-L, 203 mm |
| cassette | Sram, Eagle PG1210, 11 - 50 teeth |
| chain | Sram, SX Eagle |
| chainset | Sram, Aluminium, 36 teeth |
| display | Bosch, Kiox 300 + LED Remote |
| fork | RockShox, 35 Gold RL, Air, 160 mm travel, Aluminium steerer tube 1 1/8 - 1 1/2 tapered, 15 x 110mm thru-axle Boost |
| frame | Haibike, AllMtn Bosch CF Smart System, Carbon/aluminium |
| front brake | Shimano, MT420, 4-piston disc brake |
| grips | Haibike, MTB grips |
| h stem | Alu, A-head, 31.8 mm |
| handlebar | Haibike Components, TheBar ++, 780 mm |
| headset | Acros, Cable integration, Aluminium |
| hub rear | Shimano, MT400-B, Centerlock |
| motor | Bosch, Performance CX Smart System, 250 Wh, 85 Nm |
| pedal | Freeridepedal, Aluminium, with Reflector |
| rear brake | Shimano, MT420, 4-piston disc brake |
| rear derailleur | Sram, SX Eagle |
| rear shock | RockShox, Deluxe Select Plus, Air, Trunnion Mount |
| rims | Rodi, Tryp 30, With Eyelets, Double Wall, Aluminium Rodi, Tryp 35, Aluminium, With Eyelets, Double Wall, |
| seat | fi`zi:k, Terra Aidon X5-160 |
| seat clamp | Internal hexagon, 34.9 mm |
| seatpost | Dropper-Post Remote 31.6, Aluminium, Telescope, 31.6 mm |
| shifters | Sram, SX Eagle, Trigger switch |
| stem | Alu, A-head, 31.8 mm |
| tyres | Maxxis, Minion DHF II, 65-622, 29 x 2.5 inch Maxxis, Minion DHR II, 71-584, 27.5 x 2.8 inch |
| MPN | 45160241 |
| PNUM | 18168 |
| PRICE | £4503.00 |
Reviews| Feel | Quality | Ride | Value | ||
|---|---|---|---|---|---|
| Mr Andrew Gills |  | | | |
10 |
| Feel | 10 |
| Quality | 10 |
| Ride | 10 |
| Value | 10 |
| Overall rating | 10 |
Size guide| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (in) |
| 4' 10" - 5' 2" | 148 - 158 | XS | 13 - 14 |
| 5' 2" - 5' 6" | 158 - 168 | S | 15 - 16 |
| 5' 6" - 5' 10" | 168 - 178 | M | 17 - 18 |
| 5' 10" - 6' 1" | 178 - 185 | L | 19 - 20 |
| 6' 1" - 6' 4" | 185 - 193 | XL | 21 - 22 |
| 6' 4" - 6' 6" | 193 - 198 | XXL | 23 - 24 |
| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (in) |
| 4' 10" - 5' 2" | 148 - 158 | XS | 13 - 14 |
| 5' 2" - 5' 6" | 158 - 168 | S | 15 - 16 |
| 5' 6" - 5' 10" | 168 - 178 | M | 17 - 18 |
| 5' 10" - 6' 1" | 178 - 185 | L | 19+ |
