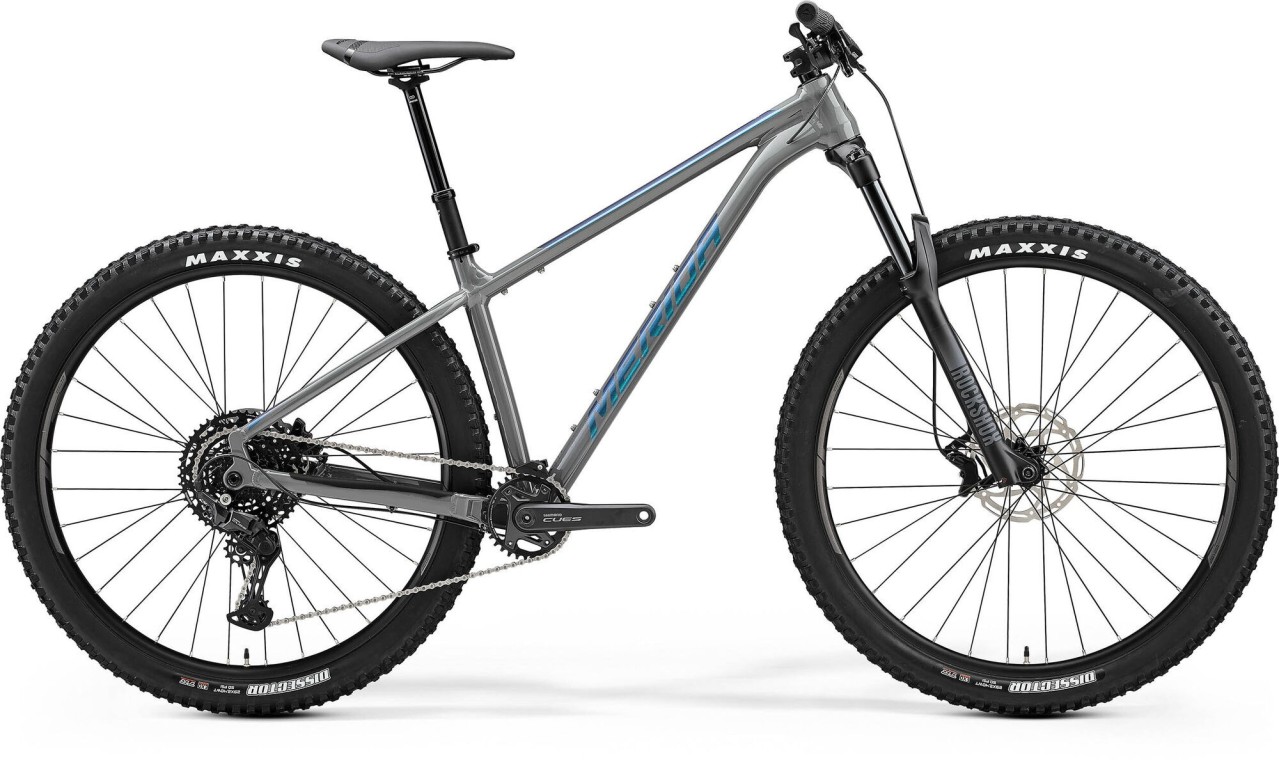

.00The Merida Big Trail has been a hit with the mountain bike press and trail riders alike. Bikeboard.cc confirmed that we 'nailed it', while MBR, IMB and many more confirmed that the Big Trail is firmly at the top of the trail hardtail game.
Conversations between UK bike shops and Merida's German R & D team resulted in the development of a fun-packed and hugely capable bike. Trail bike geometry combined with a long travel 140 mm fork and grippy 2.4" wide 29er trail tyres make this the perfect companion for exciting trail sessions and demanding all-day rides over rough terrain. It's perfectly suited to UK riding.
The modern trail bike geometry has a slack enduro inspired 65.5° head angle, steep seat angle and a long reach. A short seat tube delivers a low standover height giving plenty of space to manoeuvre on the bike when the trail gets technical but still accommodates a long travel dropper post. The geometry means most sizes work for most body sizes so riding style can be factored in. If you want to go crazy fast, take the longer size, for agility, take a shorter size.
The Big Trail has hidden talents, in addition to two sets of bottle bosses, there's a trail mount under the top tube allowing you to carry tools and extra gear on the bike. It's also possible to fit mudguards and a rack if you want to trek further afield.
We accept Cycle Scheme
Save up to £462
Pay with Cycle Scheme
Very friendly and helpful staff excellent service great communication
Specification| Availability | In stock |
|---|---|
| BIKE year | 2024 |
| Category | Mountain Bike |
| Colour | Grey |
| Condition | Brand new |
| bottom bracket | Shimano Deore |
| cassette | Shimano LG300; 11-48 teeth; 10 speed |
| chain | Shimano LG500 |
| chainset | Shimano CUES U6000; 32 tooth chainset. Crank length: 170mm (S), 175mm (M,L,XL,XXL) |
| fork | RockShox Recon Silver RL; 140mm travel; Tapered; 42mm fork offset. Max tyre clearance 29inch x 2.8inch |
| frame | TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max tyre clearance 29inch x 2.5inch |
| front brake | Tektro Gemini M530 4 piston hydraulic disc brake caliper with Tektro TR-45 180mm rotor |
| grips | Merida Comp EC |
| handlebar | Merida Expert TR; aluminium; 780mm wide; 20mm rise |
| headset | Merida M4455 |
| hub front | Shimano MT400-B; 110x15mm; 32 spokes; Centerlock |
| hub rear | Shimano MT400-B; 148x12mm; 32 spokes; Centerlock; including removable lever with 6mm Allen key |
| pedal | VP Components, VPE-891 |
| rear brake | Tektro Gemini M530 2 piston hydraulic disc brake caliper with Tektro TR-45 180mm rotor |
| rear derailleur | Shimano CUES U6000; GS |
| rims | Merida Comp TR; 29mm inner rim width; Material: aluminium; Tubeless ready tubeless tape and valves not included |
| saddle | Merida Comp CC |
| seatpost | Merida Comp TR; 30.9mm diameter; in-line; S: 125mm drop - M/L/XL: 150mm drop with Shimano SL -MT500-IL lever |
| shifters | Shimano SL-MT500-IL dropper lever and Shimano CUES U6000 |
| spokes | Black stainless |
| stem | Merida Expert TR; aluminium; 35mm diameter; 0 degree rise - Length : 50 mm all sizes |
| tyres | FRONT. Maxxis Dissector; 29in x 2.4in; Kevlar bead, folding; TR EXO Dual. REAR. Maxxis Dissector; 29 x 2.4; Kevlar bead, folding; TR EXO Dual |
| PNUM | 20422 |
| PRICE | £1100.00 |
| Available now |
Size guide| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (in) |
| 4' 10" - 5' 2" | 148 - 158 | XS | 13 - 14 |
| 5' 2" - 5' 6" | 158 - 168 | S | 15 - 16 |
| 5' 6" - 5' 10" | 168 - 178 | M | 17 - 18 |
| 5' 10" - 6' 1" | 178 - 185 | L | 19 - 20 |
| 6' 1" - 6' 4" | 185 - 193 | XL | 21 - 22 |
| 6' 4" - 6' 6" | 193 - 198 | XXL | 23 - 24 |
| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (in) |
| 4' 10" - 5' 2" | 148 - 158 | XS | 13 - 14 |
| 5' 2" - 5' 6" | 158 - 168 | S | 15 - 16 |
| 5' 6" - 5' 10" | 168 - 178 | M | 17 - 18 |
| 5' 10" - 6' 1" | 178 - 185 | L | 19+ |
