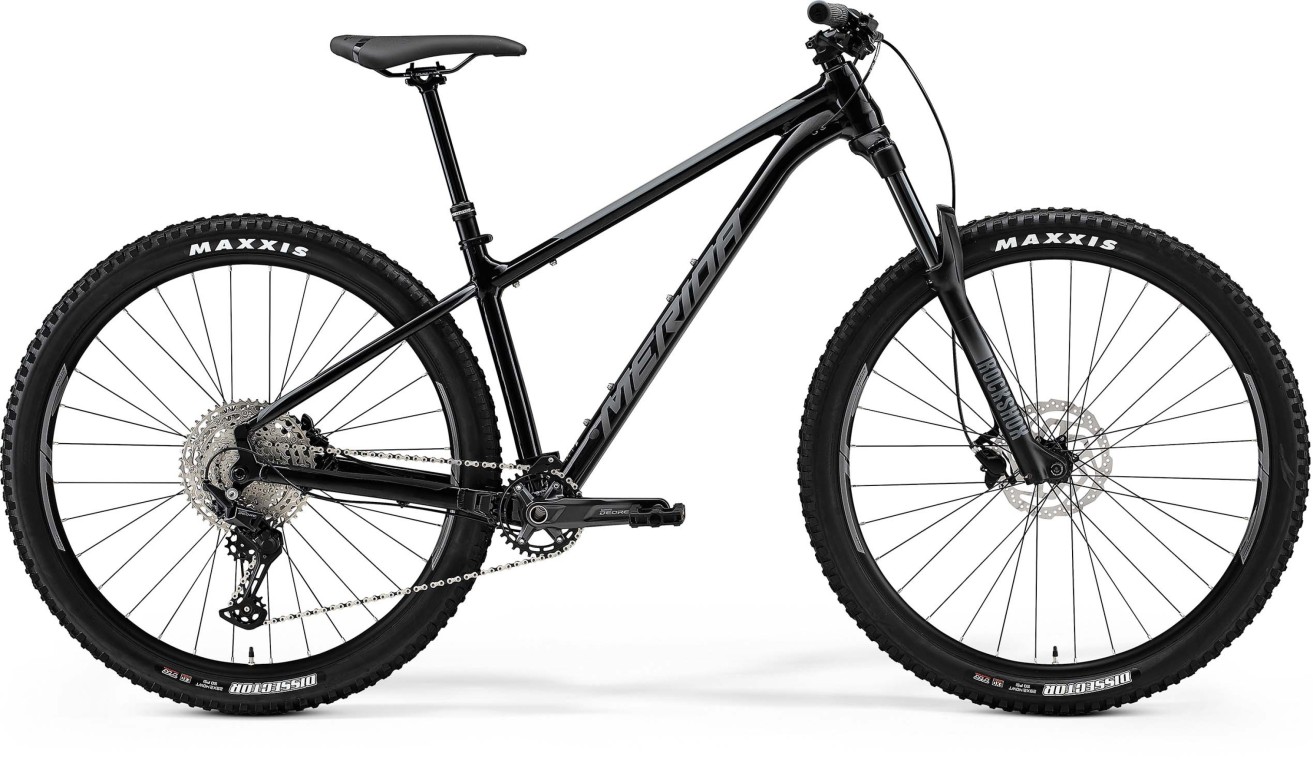

.00Merida may be one of the biggest manufacturers on the planet, but they know how to think global and act local.
The Big Trail was born out of conversations between a few UK bike shops and Rey the Merida MTB Product Manager
Over a few beers their wish list for a perfect UK trail bike was defined.
The modern trail bike geometry pairs a slack enduro inspired 65.5-degree head angle, steep seat angle, long reach and 140mm fork to deliver a fun confidence inspiring bike highly capable on technical descents.
The short seat tube delivers a very low standover height giving plenty of space to manoeuvre on the bike when the trail gets technical but still accommodates a long travel dropper post.
Rolling on chunky 29er wheels gives the Big Trail amazing cornering grip and plenty of comfort.
The geometry means most sizes work for most body sizes so riding style can be factored in, if you want to go crazy fast take the longer size, for agility take a shorter size.
The Big Trail has hidden talents, in addition to 2 sets of bottle bosses there's a trail mount under the top tube giving the possibility to carry tools and extra gear on the bike. Despite the aggresive looks there's even the possibility to fit mudguards and a rack if you want to trek further afield.
We accept Cycle Scheme
Save up to £441
Pay with Cycle Scheme
Very friendly and helpful service. Daughter absolutely loves her new Frog bike.
Specification| Availability | In stock |
|---|---|
| BIKE year | 2023 |
| Category | Mountain Bike |
| Colour | Black |
| Condition | Brand new |
| bottom bracket | Shimano Deore |
| brake levers | Shimano BR-MT200 or Tektro HD-M275 if Shimano supply is delayed |
| cassette | KMC X11 NPBK |
| chain | KMC X11 NPBK |
| chainset | Shimano Deore M5100; 32 teeth chainwheel with 170mm - S, 175mm - M up length crank with Mr. Control CH-CM1 chain guide |
| fork | RockShox Recon Silver RL; 140mm travel; Tapered; 42mm fork offset. Max tyre clearance 29inch x 2.8inch |
| frame | TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max tyre clearance 29inch x 2.5inch |
| front brake | Shimano BR-MT200; 2 piston hydraulic disc brake or Tektro HD-M275 with Shimano RT10; 180mm rotor |
| grips | Merida Comp EC |
| handlebar | Merida Expert TR; aluminium; 780mm wide; 20mm rise |
| headset | Merida M4455 |
| hub front | Shimano MT400-B; 110x15mm; 32 spokes; Centerlock |
| hub rear | Shimano MT400-B; 148x12mm; 32 spokes; Centerlock; including removable lever with 6mm Allen key |
| pedal | VP Components, VPE-891 |
| rear brake | Shimano BR-MT200; 2 piston hydraulic disc brake or Tektro HD-M275 with Shimano RT10; 180mm rotor |
| rear derailleur | Shimano Deore M5100 Shadow+ |
| rims | Merida Comp TR; 29mm inner rim width; Material: aluminium; Tubeless ready tubeless tape and valves not included |
| saddle | Merida Comp CC |
| seatpost | Merida Comp TR; 30.9mm diameter; in-line; S: 125mm drop - M/L/XL: 150mm drop with Shimano SL -MT500-IL lever |
| shift levers | Shimano Deore M5100 |
| spokes | Black stainless |
| stem | Merida Expert TR; aluminium; 35mm diameter; 0 degree rise - Length : 50 mm all sizes |
| tyres | Front tyre: Maxxis Dissector; 29inch x 2.4inch; Kevlar bead; folding; TR EXO Dual Rear tyre: Maxxis Dissector; 29inch x 2.4inch; Kevlar bead; folding; TR EXO Dual |
| MPN | 6110881838 |
| PNUM | 19159 |
| PRICE | £1050.00 |
| Available now |
Size guide| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (in) |
| 4' 10" - 5' 2" | 148 - 158 | XS | 13 - 14 |
| 5' 2" - 5' 6" | 158 - 168 | S | 15 - 16 |
| 5' 6" - 5' 10" | 168 - 178 | M | 17 - 18 |
| 5' 10" - 6' 1" | 178 - 185 | L | 19 - 20 |
| 6' 1" - 6' 4" | 185 - 193 | XL | 21 - 22 |
| 6' 4" - 6' 6" | 193 - 198 | XXL | 23 - 24 |
| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (in) |
| 4' 10" - 5' 2" | 148 - 158 | XS | 13 - 14 |
| 5' 2" - 5' 6" | 158 - 168 | S | 15 - 16 |
| 5' 6" - 5' 10" | 168 - 178 | M | 17 - 18 |
| 5' 10" - 6' 1" | 178 - 185 | L | 19+ |
