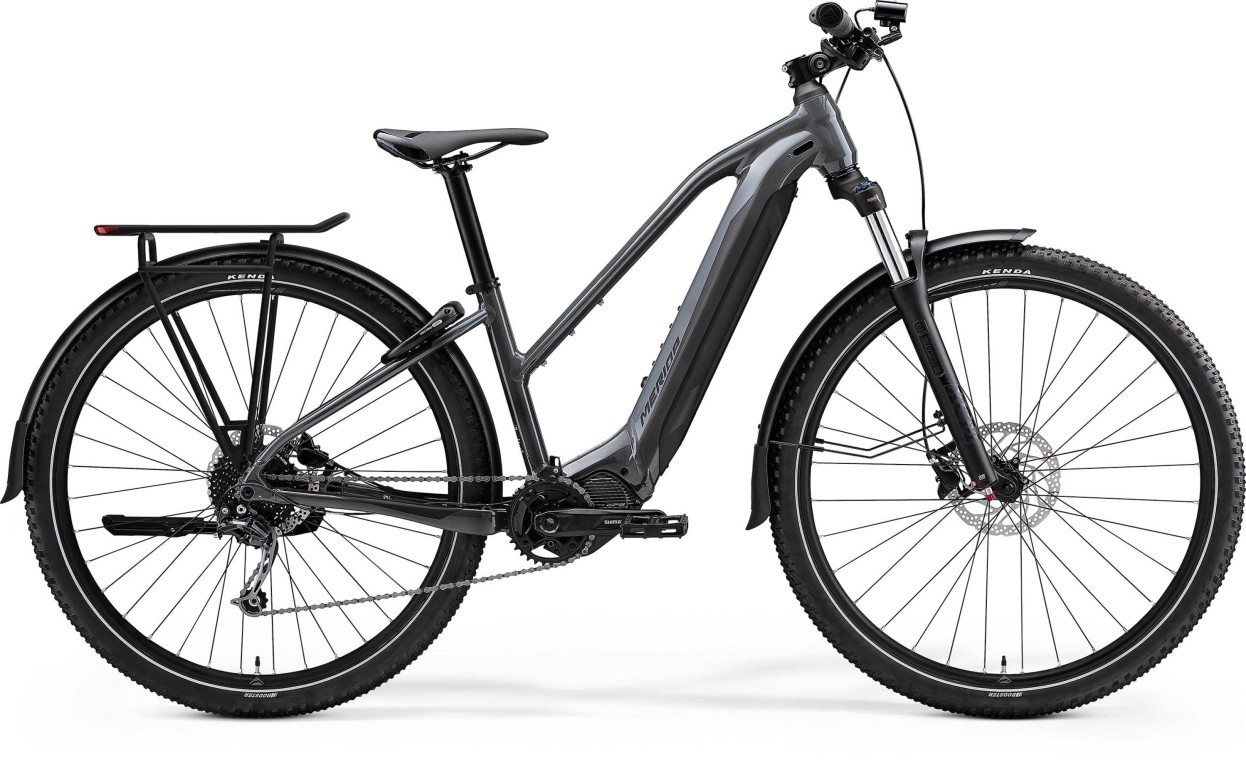

Think of it as a modern SUV, stylish and practical. 29" wheels make for effortless cycling, the fast and grippy 2.2" Kenda Booster tyres fit neatly inside the mudguards for year round practicality.
The bent top tube provides a really low standover height for rider confidence and easy mounting and dismounting.
Some of the technical features and thinking from the award winning Merida eOne-Sixty make an appearance - satellite charging socket, two compound battery compartment cover, and neat bottle boss system incorporating tidy cable routing to name but a few.
The list of well thought out details is impressive: Tyres with reflective strips, rack with integrated rear light, Leyzyne front light, kick stand and integrated lock.
Pay in 3 instalments of £1066.67* or in 30 days.
Available on all full price items.
We accept Cycle Scheme
Save up to £1,344
Pay with Cycle Scheme
I was nervous of buying on the web but DH made it an easy process.
Specification| Availability | In stock |
|---|---|
| BIKE year | 2023 |
| Category | Hybrid |
| Colour | Grey |
| Condition | Brand new |
| battery | 630 Wh |
| bottom bracket | Part of Shimano Steps motor |
| brake levers | Shimano BR-MT200 or Tektro HD-M275 if Shimano supply is delayed |
| cassette | Shimano CN-HG54 |
| chain | Shimano CN-HG54 |
| chainset | Shimano CRE70-B; 34 teeth chainwheel with Shimano FCEM600; 165mm length crank |
| display | Shimano SC-E5003 |
| fork | SunTour XCM34-Boost LOR DS; 100mm; Tapered; 51mm fork offset. Max Tyre clearance 29inch x 2.4inch |
| frame | Lite III - Hydroformed 6066 aluminium, intergrated battery, internal cable routing, Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Mounts for mudguards and kickstand. Max Tyre clearance 29inchx2.25inch with mudguards, 29inchx2.35inch w |
| front brake | Shimano BR-MT200; 2 piston hydraulic disc brake or Tektro HD-M275 with Shimano RT30; 180mm rotor |
| grips | Merida Expert TK |
| handlebar | Merida Expert CC; aluminium; 720mm wide; 10mm rise |
| headset | Merida-8153 |
| hub front | Shimano MT400-B; 110x15mm; 32 spokes; Centerlock |
| hub rear | Shimano MT400-B; 148x12mm; 36 spokes; Centerlock; including removable lever with 4/6mm Allen key |
| motor | Shimano E8036; 630Wh battery, Shimano EP8; 85Nm motor |
| pedal | VP Components, VPE-537 |
| rear brake | Shimano BR-MT200; 2 piston hydraulic disc brake or Tektro HD-M275 with Shimano RTEM300; 180mm rotor |
| rear derailleur | Shimano Deore RDM5120 10 |
| rims | Merida Comp CC; 20mm inner rim width; Material: aluminium |
| saddle | Merida Expert TK; V-mount |
| seatpost | Merida Expert CC; aluminium; 34.9mm diameter; in-line |
| shift levers | Shimano Deore M4100 10 speed |
| spokes | Black stainless |
| stem | Merida Expert CT; aluminium; 31.8mm diameter; adjustable - Length : 90 mm all sizes |
| tyres | Front tyre: Kenda Booster; 29inch x 2.2inch; wire bead Rear tyre: Kenda Booster; 29inch x 2.2inch; wire bead |
| MPN | 6110867003 |
| PNUM | 19171 |
| PRICE | £3200.00 |
| Available now |
Click here to view finance options.
Call 029 2052 9955 or email us and this bike could be yours today!
Size guide| RIDER HEIGHT | FRAME SIZE SUGGESTED | |||
|---|---|---|---|---|
| (ft - in) | (cm) | (in) | Size | (cm) |
| 4' 10" - 5' 1" | 147 - 155 | 13 - 14 | XS | 47 - 49 |
| 5' 1" - 5' 5" | 155 - 165 | 15 - 16 | S | 50 - 52 |
| 5' 5" - 5' 9" | 165 - 175 | 17 - 18 | M | 53 - 54 |
| 5' 9" - 6' 0" | 175 - 183 | 19 - 20 | L | 55 - 57 |
| 6' 0" - 6' 3" | 183 - 191 | 21 - 22 | XL | 58 - 61 |
| 6' 3" - 6' 6" | 191 - 198 | 23 - 25 | XXL | 61 - 63 |
