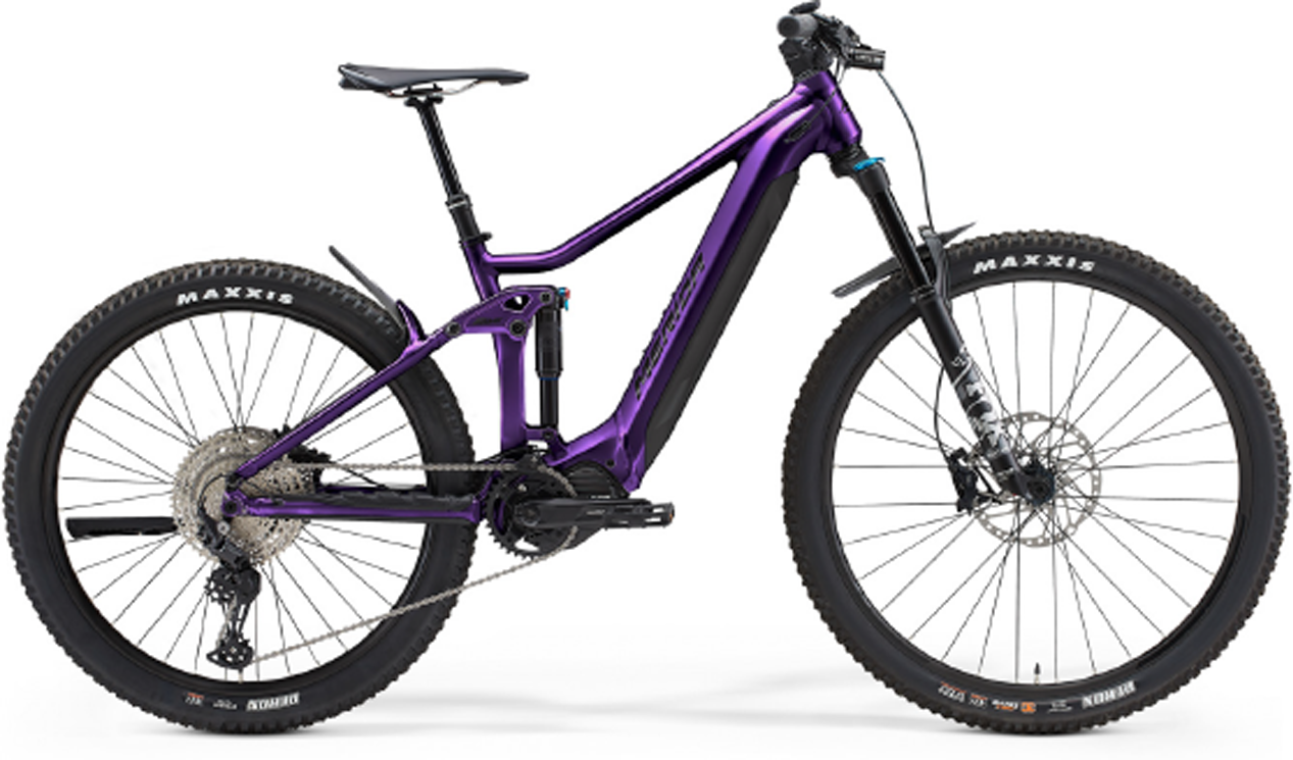

.00The eOne-Sixty is the headline grabber of the Merida eBike range; for 3 generations it's been winning tests, gathering accolades and generally hogging the limelight!
The eOne-Forty shares exactly the same frame and design features but has different ride characteristics.
The shock stroke on the eOne-Forty is shorter, reducing rear travel to 133mm and creating a steeper seat angle. The shorter 140mm fork extends the reach, delivering a slightly steeper head angle. In combination these small changes make the eOne-Forty more agile and playful; a highly competent climber that's perfect for all day riding.
The mixed wheel size set up is carried over, to give the e-full suspension bikes precise steering, fantastic 'rolling over obstacles' behaviour yet maximum traction, a 29er front wheel with a 2.5" tyre is combined with a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction.
All eOne-Forty models use the powerful Shimano EP8 85NM motor and bigger 630Wh battery (with the exception of frame size - S which uses 504Wh).
Shimano's e-Tube app allows you to tailor power delivery to suit your riding style; you can set two profiles; one for shredding and one for cruising.
We accept Cycle Scheme
Save up to £1,953
Pay with Cycle Scheme
Top top service, everyone I dealt with was superb! Definitely recommend you guys to anyone buying a bike????
Specification| Availability | In stock |
|---|---|
| BIKE year | 2023 |
| Category | Mountain Bike |
| Colour | Purple , black |
| Condition | Brand new |
| battery | 630 Wh |
| bottom bracket | Part of Shimano Steps motor |
| brake levers | Shimano SLX |
| cassette | KMC e12T EPT |
| chain | KMC e12T EPT |
| chainset | Shimano CRE80-12-B; 34 tooth chainring with Shimano FCEM600; 165mm length crank |
| display | Shimano SC-E7000 |
| fork | FOX Rhythm 34 Float eMTB+; Air; 140mm travel; Tapered; 51mm fork offset. Max. tyre size: 29inch x 2.5inch |
| frame | Lite III - Hydroformed 6061 double butted aluminium with intergrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5inch x 2.8inch. |
| front brake | Shimano SLX; 4 piston hydraulic disc brake caliper with Shimano RT64; 203 mm rotor |
| grips | Merida Expert EC |
| handlebar | Merida Expert eTR; 780mm wide; 20mm rise |
| headset | Merida-8152 |
| hub front | Shimano SLX; 110x15mm; 32 spokes; Center lock |
| hub rear | Shimano SLX; 148x12mm, 36 spokes; Center lock; including removable lever with 4/6mm Allen key |
| motor | Shimano E8036; 630Wh internal battery, Shimano Steps EP8; 85Nm |
| pedal | VP Components, VPE-527 |
| rear brake | Shimano SLX; 4 piston hydraulic disc brake caliper with Shimano RTEM600; 203 mm rotor |
| rear derailleur | Shimano XT RDM8100 Shadow+ 12 |
| rear shock | RockShox Deluxe Select+; platform |
| rims | Merida Expert TR; 29mm inner rim width; Aluminium; Tubeless ready tubeless tape and valves not included |
| saddle | Merida Expert CC; V-mount including Merida multitool |
| seatpost | Merida Expert TR; 30.9mm diameter; in-line; Drop: 100mm S, 125mm M, 150mm L/XL, 170mm XXL |
| shift levers | Shimano Deore SL-M6100 12 speed with Shimano SL -MT500-IL lever |
| spokes | Black stainless |
| stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 50mm all sizes. GoPro & Supernova mount point. |
| tyres | Front tyre: Maxxis Rekon; 29inch x 2.4inch; kevlar bead; 3C EXO MaxxTerra Rear tyre: Maxxis Rekon; 27.5inch x 2.6inch; kevlar bead; TR 3C EXO MaxxTerra |
| MPN | A62211A01691 |
| PNUM | 19350 |
| PRICE | £4650.00 |
| Available now |
Size guide| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (in) |
| 4' 10" - 5' 2" | 148 - 158 | XS | 13 - 14 |
| 5' 2" - 5' 6" | 158 - 168 | S | 15 - 16 |
| 5' 6" - 5' 10" | 168 - 178 | M | 17 - 18 |
| 5' 10" - 6' 1" | 178 - 185 | L | 19 - 20 |
| 6' 1" - 6' 4" | 185 - 193 | XL | 21 - 22 |
| 6' 4" - 6' 6" | 193 - 198 | XXL | 23 - 24 |
| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (in) |
| 4' 10" - 5' 2" | 148 - 158 | XS | 13 - 14 |
| 5' 2" - 5' 6" | 158 - 168 | S | 15 - 16 |
| 5' 6" - 5' 10" | 168 - 178 | M | 17 - 18 |
| 5' 10" - 6' 1" | 178 - 185 | L | 19+ |
