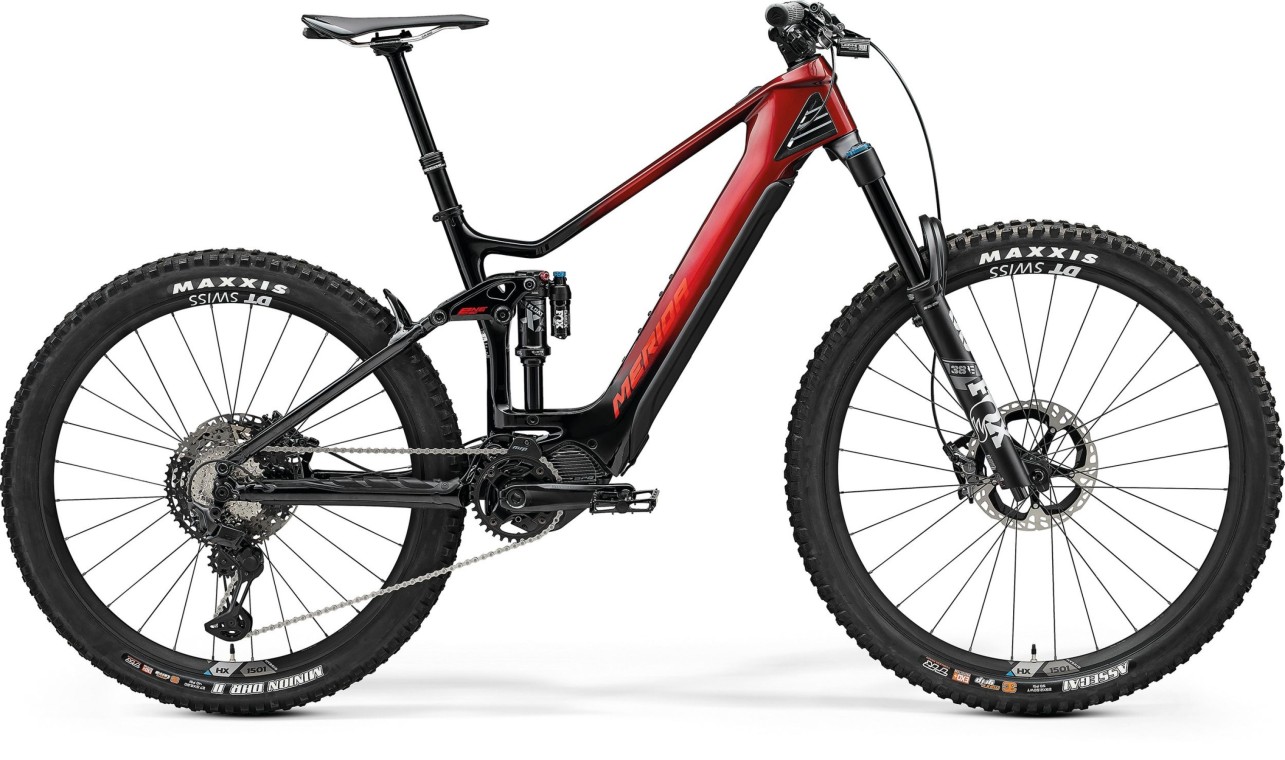

The Merida eOne-Sixty is a hard-hitting enduro-ready ebike which has wowed the press worldwide and become the most decorated, tested and awarded bike in Merida's 50 year history. E-Mountainbike gave it the 'BEST IN TEST' in their 'Best of 2021' eMTB group test, World of MTB also gave it their 'Best of 2021' award and FREERIDE gave the 9000 the almost perfect score of 9.5 out of ten, just to mention a few.
The Merida eOne-Sixty is built around compact Shimano Steps motors, the Shimano design ethos is around natural riding, and the physical design of the motor allows Merida designers to create very short chainstays which deliver agile and "regular bike" geometry.
To give the e-full suspension bikes precise steering, fantastic 'rolling over obstacles' behaviour yet maximum traction, we have combined a 29er front wheel with a 2.5" tyre and a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction allowing you to feel planted when tackling the most demanding of trails.
The carbon frame incorporates an internal block which prevents the bars turning and damaging the frame in the event of a tumble. The signature "Thermo Gate" vents at the top of the down tube allow heat to dissipate and maintain the temperature of the battery.
Shimano's e-Tube app allows you to tailor power delivery to suit your riding style, and even set two profiles, one for shredding and one for cruising.
We accept Cycle Scheme
Save up to £1,969
Pay with Cycle Scheme
Very friendly and helpful staff excellent service great communication
Specification| Availability | In stock |
|---|---|
| BIKE year | 2023 |
| Category | Mountain Bike |
| Colour | Red |
| Condition | Brand new |
| battery | 630 Wh |
| bottom bracket | Part of Shimano Steps motor |
| brake levers | Shimano XT |
| cassette | CNLG500 |
| chain | CNLG500 |
| chainset | Shimano CRE80-B; 34 tooth chainring with Shimano FCEM900; hollow crank 165mm all sizes; MRP 1x chain device |
| display | Shimano SC-EM800 |
| fork | FOX 38 Elite eMTB+ Air; 160mm travel; Tapered; 51mm fork offset. Max. tyre size: 29inch x 2.6inch |
| frame | CFA II Carbon front with 6016 aluminium rear. Integrated battery. Satellite on/off switch, on-bike charging port, thermo gate. Internal cable routing. Tapered head tube, Internal Block. 148 x 12mm axle standard. Max. tyre size 27.5inch x 2.8inch. |
| front brake | Shimano XT; 4 piston hydraulic disc brake caliper with Shimano RT-MT900; 203mm rotor |
| grips | Merida Expert EC |
| handlebar | Merida Expert eTR; 780mm wide; 20mm rise |
| headset | Merida-8152 |
| hub front | Part of wheelset - DT Swiss Spline HX1501 ONE 30 boost; 110x15mm; center lock |
| hub rear | Part of wheelset - DT Swiss Spline HX1501 ONE 30 boost; 148x12mm; center lock; Merida Expert TR axle; including removable lever, 6/4mm allen key |
| motor | Shimano E8036; 630Wh internal battery, Shimano Steps EP8; 85Nm |
| pedal | VP Components, VPE-527 |
| rear brake | Shimano XT; 4 piston hydraulic disc brake caliper with Shimano RT-EM910; 203mm rotor |
| rear derailleur | Shimano XT RDM8130 Shadow+ 11 |
| rear shock | FOX Float DPX2 Elite; platform |
| rims | Part of wheelset - DT Swiss Spline HX1501 ONE 30 boost; 30mm inner rim width; aluminium; Tubeless ready tubeless tape and valves included |
| saddle | Merida Expert CC; V-mount including Merida multitool |
| seatpost | Merida Expert TR; 30.9mm diameter; in-line; Drop: 100mm XS, 125mm S, 150mm M, 170mm L/XL |
| shift levers | Shimano XT M8130 and Shimano SL -MT800-IL dropper lever |
| spokes | part of wheelset |
| stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm all sizes. GoPro & Supernova mount point. |
| tyres | Front tyre: Maxxis Assegai; 29 x 2.5inch; Kevlar bead, folding; TR EXO+ 3C MaxxGrip Rear tyre: Maxxis DHR II; 27.5inch x 2.6inch; Kevlar bead, folding; 3C EXO+ TR |
| MPN | A62211A03339 |
| PNUM | 19391 |
| PRICE | £4689.00 |
| Available now |
Size guide| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (in) |
| 4' 10" - 5' 2" | 148 - 158 | XS | 13 - 14 |
| 5' 2" - 5' 6" | 158 - 168 | S | 15 - 16 |
| 5' 6" - 5' 10" | 168 - 178 | M | 17 - 18 |
| 5' 10" - 6' 1" | 178 - 185 | L | 19 - 20 |
| 6' 1" - 6' 4" | 185 - 193 | XL | 21 - 22 |
| 6' 4" - 6' 6" | 193 - 198 | XXL | 23 - 24 |
| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (in) |
| 4' 10" - 5' 2" | 148 - 158 | XS | 13 - 14 |
| 5' 2" - 5' 6" | 158 - 168 | S | 15 - 16 |
| 5' 6" - 5' 10" | 168 - 178 | M | 17 - 18 |
| 5' 10" - 6' 1" | 178 - 185 | L | 19+ |
