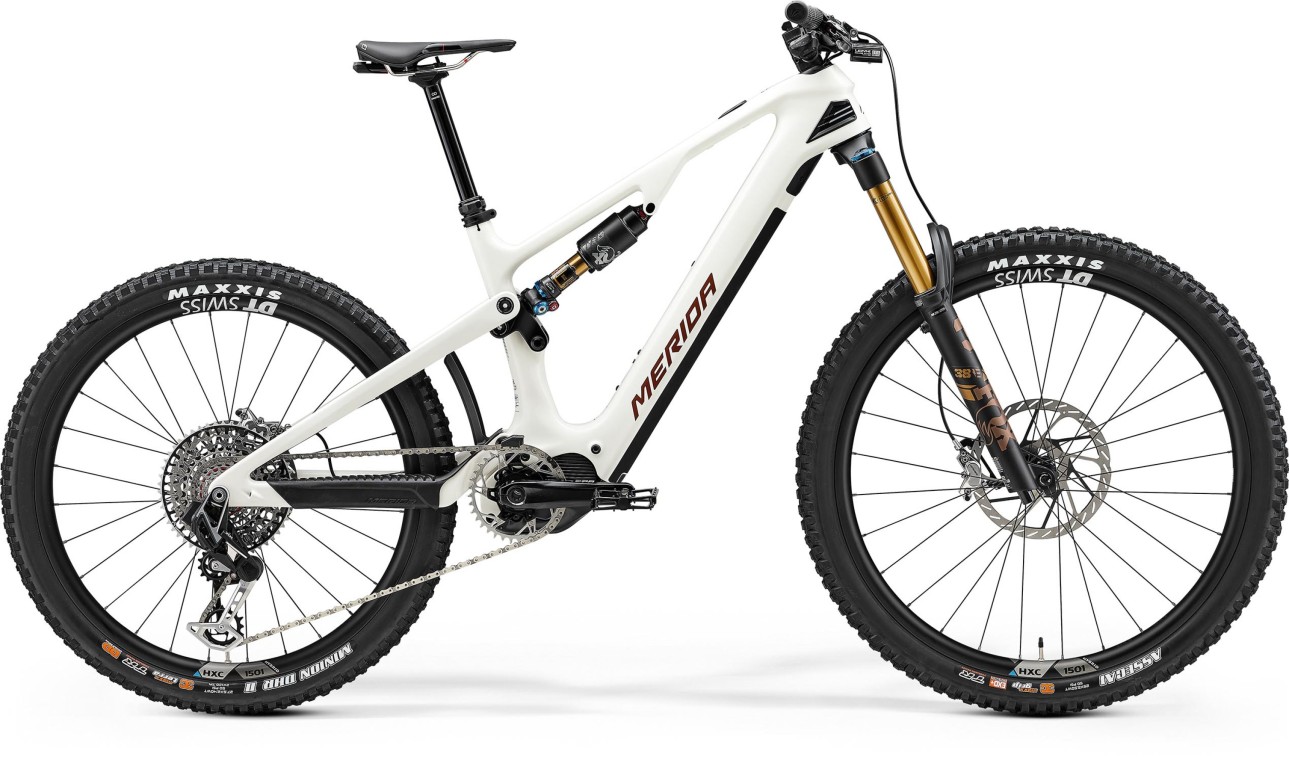

Our King of the range, carbon frame is paired with the powerful, lightweight Shimano 85Nm EP801 motor and an integrated 600 Wh battery to minimise weight. Componentry includes a Fox 38 Performance fork, a Fox Factory Float X2 shock, SRAM XX Eagle Transmission AXS wireless and chainset, Maxxis tyres and a DT Swiss carbon tubeless ready wheelset. Lightweight or full power? How about both? The new eOne-Sixty CF pairs an enduro-ready lightweight full carbon chassis with a full-support motor and a 600 Wh battery. A 360 Wh range extender is available separately so you don't have to choose between precise, playful handling, decent range or support that'll get you up the trickiest technical sections. With 170 mm travel at the front and 174 mm at the rear, it's perfectly at home on a race track or hitting the trails on repeat. The award winning FAST kinematic suspension and Agilometer sizing of our regular One-Sixty enduro complement our proven e-bike heritage. Our low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks. Our flip chip design enables you to run with mixed size 29-in front and 27.5-in rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that's been designed for the toughest enduro trails. Thanks to our 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whichever suits you.
Pay in 3 instalments of £3500* or in 30 days.
Available on all full price items.
We accept Cycle Scheme
Save up to £4,410
Pay with Cycle Scheme
I was nervous of buying on the web but DH made it an easy process.
Specification| Availability | In stock |
|---|---|
| BIKE year | 2025 |
| Category | Mountain Bike |
| Colour | White |
| Condition | Brand new |
| battery | 600Wh |
| bottom bracket | Part of Shimano Steps motor |
| brake levers | SRAM Code Ultimate Stealth |
| cassette | SRAM XX Eagle Transmission; 10-52; 12 Speed |
| chainring | SRAM XX Eagle - Flattop |
| chainset | SRAM XX Eagle Transmission E-MTB for Steps; 36 teeth with Shimano FC-EM900 crank; 165mm all sizes; with Merida chain guide |
| display | Shimano SC-EM800 |
| fork | FOX 38 Factory eMTB+; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29-in x 2.6-in |
| frame | Carbon III - carbon main frame and rear triangle internal battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29-in x 2.6-in |
| grips | Merida Expert EC |
| handlebar | Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise |
| headset | Acros ICR Merida integrated neck with Blocklock |
| hub front | Part of wheelset - DT Swiss HXC 1501; 110x15mm; 6-Bolt |
| hub rear | Part of wheelset - DT Swiss HXC 1501; 148x12mm; 6-Bolt; SRAM XD with Merida Expert TR; including removeable lever, 6/4mm allen key |
| motor | Trendpower TPS-C15-58SD; 600Wh integrated, Shimano EP801; 85Nm |
| pedal | VP VPE-527 |
| rear derailleur | SRAM XX Eagle Transmission AXS |
| rims | Part of wheelset - DT Swiss HXC 1501; 30mm inner rim width; carbon; Tubeless ready tubeless tape and valves included |
| saddle | Proxim Nembo Triox; V-mount adapter; including Merida minitool |
| seatpost | Merida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel |
| shifters | Limotech RM10 For SRAM MMX dropper lever and SRAM AXS Pod Controller |
| shock | FOX Factory Float X2; 2 Pos Lever |
| stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes |
| tyres | Front tyre: Maxxis Assegai; 29-in x 2.5-in; Kevlar bead, folding; TR EXO+ 3C MaxxGrip Rear tyre: Maxxis DHR II; 27.5-in x 2.4-in; Kevlar bead, folding; 3C DD TR MaxxTerra |
| wheelset | Spokes: Part of wheelset |
| MPN | A62511A00041 |
| PNUM | 20305 |
| PRICE | £10500.00 |
| Available now |
Click here to view finance options.
Call 029 2052 9955 or email us and this bike could be yours today!
Size guide| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (in) |
| 4' 10" - 5' 2" | 148 - 158 | XS | 13 - 14 |
| 5' 2" - 5' 6" | 158 - 168 | S | 15 - 16 |
| 5' 6" - 5' 10" | 168 - 178 | M | 17 - 18 |
| 5' 10" - 6' 1" | 178 - 185 | L | 19 - 20 |
| 6' 1" - 6' 4" | 185 - 193 | XL | 21 - 22 |
| 6' 4" - 6' 6" | 193 - 198 | XXL | 23 - 24 |
| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (in) |
| 4' 10" - 5' 2" | 148 - 158 | XS | 13 - 14 |
| 5' 2" - 5' 6" | 158 - 168 | S | 15 - 16 |
| 5' 6" - 5' 10" | 168 - 178 | M | 17 - 18 |
| 5' 10" - 6' 1" | 178 - 185 | L | 19+ |
