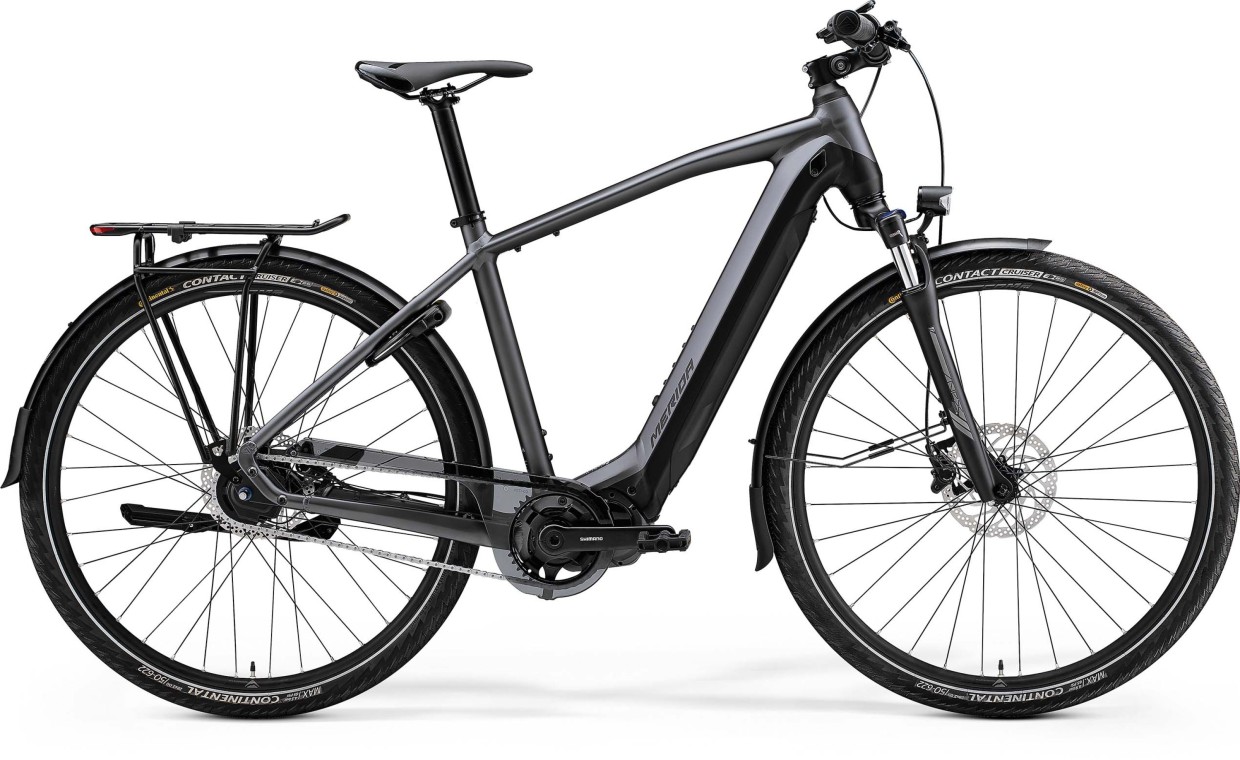

The perfect partner for urban riding, offering comfort and practicality. Standard-fit mudguards, lights, lock, rack and kickstand mean you're ready to go from the moment you leave the shop.
The range includes options a low step through city version for added ease.
Fast rolling 700c wheels are perfect for use in town, on gravel tracks or cycle paths. Wide 50 mm tyres add extra grip and comfort and their reflective sidewalls strips enhance rider safety in low light.
Choose between frames such as this with internally mounted batteries or a more affordable, semi-integrated design. All use a powerful Shimano STEPS drive unit with batteries mounted low to aid balance and emulate a natural riding feel. A tapered head tube delivers confidence inspiring handling.
All electric bikes have an approved rider and equipment weight of up to 150 kg, meaning there's plenty of capacity for you and your luggage.
Strong but controllable hydraulic disc brakes help you stop with ease.
Pay in 3 instalments of £1250* or in 30 days.
Available on all full price items.
We accept Cycle Scheme
Save up to £1,575
Pay with Cycle Scheme
Excellent, repair carried out with full transparency on costs beforehand, bike back quicker than anticipated and rides like a dream
Specification| Availability | In stock |
|---|---|
| BIKE year | 2023 |
| Category | Hybrid |
| Colour | Anthracite , black |
| Condition | Brand new |
| battery | 630 Wh |
| bottom bracket | Part of Shimano Steps motor |
| brake levers | Shimano MT-402 |
| cassette | KMC Z1eHX EPT |
| chain | KMC Z1eHX EPT |
| chainset | Shimano CRE61; 38 tooth chainring with Shimano FC-E6100; 170mm length crank and chainguard |
| display | Shimano SC-E6100 |
| fork | Suntour NEX E25; Coil; 63mm travel. Max. tyre size: 700 x 52c |
| frame | Lite II - Hydroformed 6066 triple butted aluminium, internal battery. 142 x 12mm axle standard. Internal cable routing. Max. tyre size 700 x 50c with mudguards |
| front brake | Shimano MT402-3A; 2 piston hydraulic disc brake caliper with Shimano RT30; 180mm rotor |
| grips | Merida Expert TK |
| handlebar | Merida Expert; aluminium; 660mm wide; 15mm rise |
| headset | Merida-8156 |
| hub front | Shimano M4050; 100x9mm; 32 spokes; Center lock |
| hub rear | Shimano Nexus Inter-5E; 135x9mm; 36 spokes; Center lock |
| motor | Shimano E8036; 630Wh internal battery, Shimano Steps E6100; 60Nm |
| pedal | VP Components, VPE-891 |
| rear brake | Shimano MT402-3A; 2 piston hydraulic disc brake caliper with Shimano RTEM300; 180mm rotor |
| rear derailleur | Not Applicable - Internal hub gears |
| rims | Merida Comp TK; 20mm inner rim width; Aluminium |
| saddle | Merida Expert TK; V-mount |
| seatpost | Merida Expert CC; aluminium; 34.9mm diameter; in-line |
| shift levers | Shimano SW-E6010-R |
| spokes | Black stainless |
| stem | Merida Expert CT; aluminium; 31.8mm diameter; adjustable - Stem length: 90mm XS/S/M, 110mm L/XL |
| tyres | Front tyre: Continental Contact Cruiser; 622-50; wire bead; reflective stripe Rear tyre: Continental Contact Cruiser; 622-50; wire bead; reflective stripe |
| MPN | A62211A00151 |
| PNUM | 19378 |
| PRICE | £3750.00 |
| Available now |
Click here to view finance options.
Call 029 2052 9955 or email us and this bike could be yours today!
Size guide| RIDER HEIGHT | FRAME SIZE SUGGESTED | |||
|---|---|---|---|---|
| (ft - in) | (cm) | (in) | Size | (cm) |
| 4' 10" - 5' 1" | 147 - 155 | 13 - 14 | XS | 47 - 49 |
| 5' 1" - 5' 5" | 155 - 165 | 15 - 16 | S | 50 - 52 |
| 5' 5" - 5' 9" | 165 - 175 | 17 - 18 | M | 53 - 54 |
| 5' 9" - 6' 0" | 175 - 183 | 19 - 20 | L | 55 - 57 |
| 6' 0" - 6' 3" | 183 - 191 | 21 - 22 | XL | 58 - 61 |
| 6' 3" - 6' 6" | 191 - 198 | 23 - 25 | XXL | 61 - 63 |
